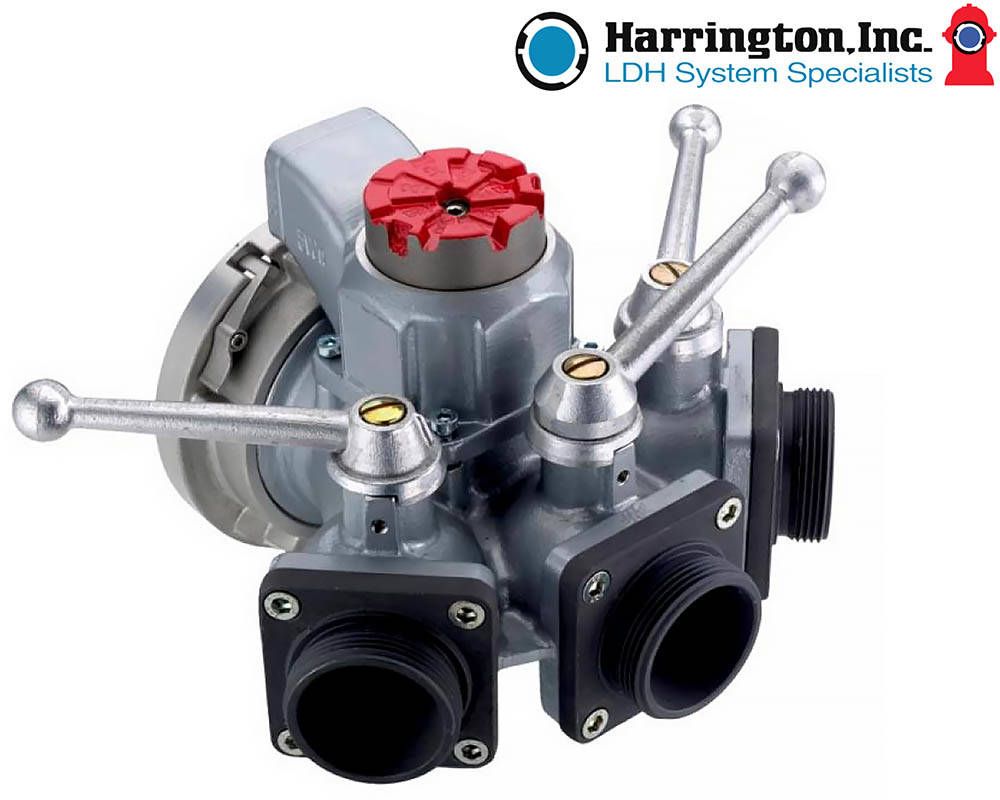

3-Way Ball Valve
Harrington Inc.
Mid-size, light weight 3-way LDH ball valve feeds three smaller lines from one LDH line or feed one LDH line from up to three smaller lines. The valve balls are hard anodized with stainless steel tappets for corrosion resistance. Valve includes a field adjustable pressure relief valve.
• Lightweight aluminum design
• Powder coated finish
• Hard anodized balls and stainless steel tappet for best corrosion protection
• Hard coated NH male flanges
• Large waterway
• Field adjustable 250 PSI pressure relief valve
• Inlet: 4”, 5” or 6” Storz
• Outlet: (3) 2.5” NH Threaded Male
• Length: 13.5”
• Height: 11”
• Width: 13”
• Weight: 12 lbs. (approx.)
