511-RK Heavy Duty Breaching Drill Kit
The Ajax Rescue Tools 511-RK Heavy Duty Breaching Drill Kit is designed to offer quick vertical or horizontal access through various grades of concrete and stone. This kit includes a compact drill with a capacity ranging from 5/8" diameter to 2 ¼” diameter for stitching, the placement of a camera hole, and anchor pins. All drill bits are carbide tipped allowing them to be used in the toughest of materials and include an air hole running the entire length of the bit allowing air to blow the dust out of the hole while drilling.
The heart of the Ajax Rescue Tools 511-RK Kit is the heavy-duty hard-hitting hammer drill that offers the rescue technician the ability to quickly drill all required holes, along with the power needed to drill holes up to 2-1/4" in diameter to position cameras and listening devices. Test results indicate that the drill and drill bits can improve drilling speeds significantly over traditional electric and hydraulic drills, meaning quicker access when time counts. Also, each AJAX hammer and drill features a quick-change chuck that provides quick and easy bit changes.

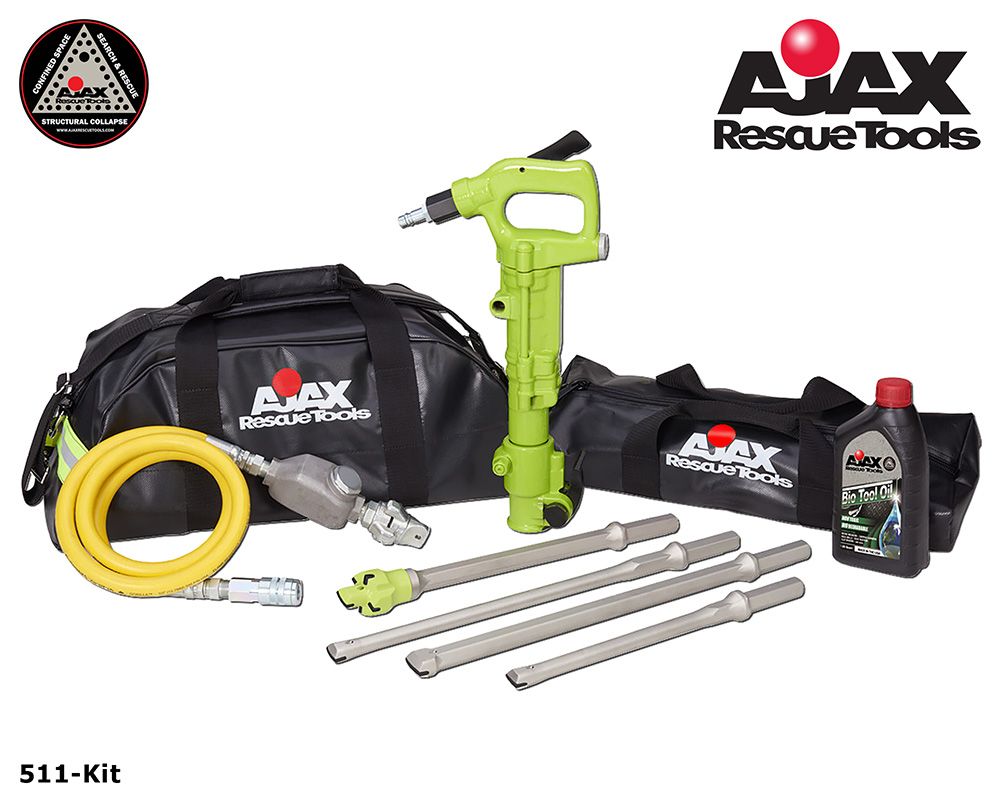

The 511-RX Kit includes an 18 oz. Rip Stop vinyl Go Bag with shoulder strap and an accessory bag to hold chisel bits. The Go Bag comes equipped with an internal locking mechanism that holds the drill and bits securely. Ajax Tools has also included a 5' whip hose with pressure feed lubricator and a quart of biodegradable air tool oil giving the rescue technician all the tools necessary to start a breaching operation.
|
Qty. | AJAX No. | Item |
1 | 1967 | Heavy Duty Breaching Drill w/ quick-change chuck |
1 | 60010 | Carbide Speedbit (5/8" Hole Dia.) (9" Drill Depth) |
1 | 60110 | Carbide Speedbit (7/8" Hole Dia.) (14" Drill Depth) |
1 | 60160 | Carbide Speedbit (1" Hole Dia.) (14" Drill Depth) |
1 | 64010 | 12" "H" Thread Drill Rod |
1 | 63606 | 2-1/4" Dia. Piloted Carbide Rock Bit ("H" Thread) |
1 | 1037 | 5' Whip Hose the Pressure Feed Lubricator |
1 | 1079 | 32oz. Biodegradable Air Tool Oil |
1 | 1950 | Go Bag w/ internal hammer and chisel/drill lock |
1 | 1951 | Accessory Bag |
1 | 1952 | Structual Collapse Luggage Tag |
Ajax No. 1967 Heavy Duty Breaching Drill Spec. | ||
Weight | 16.5 lbs. | 7.5 kg |
Length | 19" | 483 mm |
Bore | 1.9375" | 49.18 mm |
Stroke | 1.89" | 48 mm |
Blows per Minute | 2900 | 2900 |
Chuck Size | 7/8" x 3 1/4" Hex | 22 x 83 mm |
Air inlet | 1/2" NPT | 12.7 mm |
Air Consumption | 36 cfm | 1.2m3/m |
