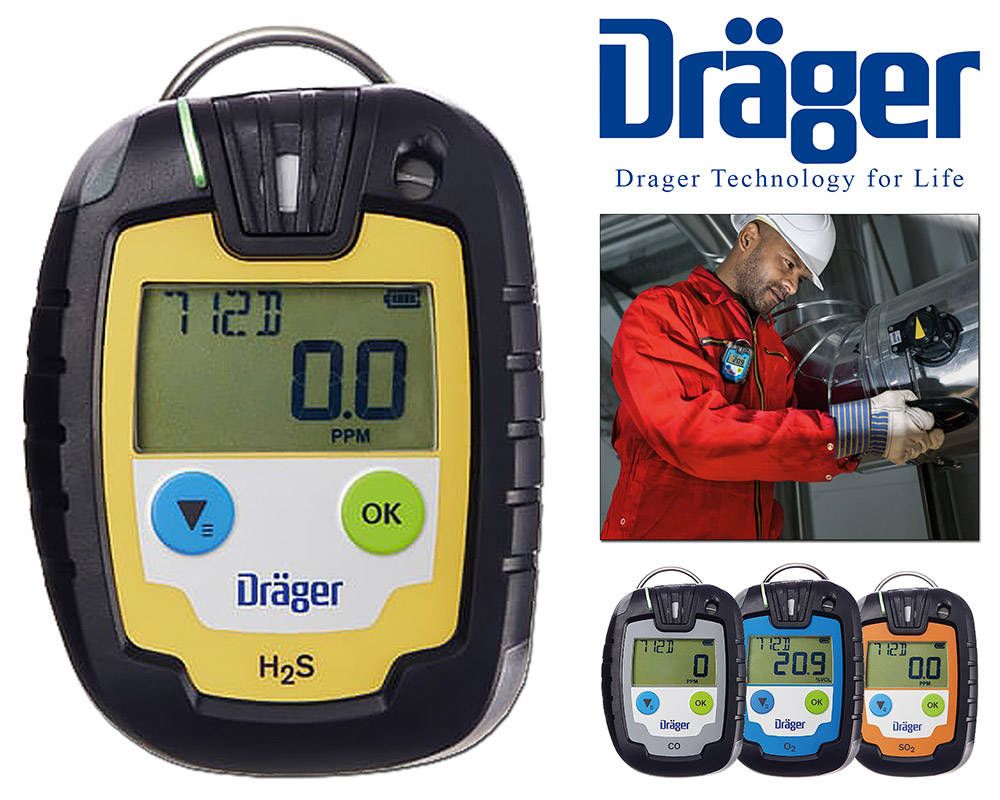

Dräger Pac 6000
The Dräger Pac® 6000 disposable personal gas detectors can be configured to measures CO, H2S, SO2 or O2 reliably and precisely, even in the toughest conditions. The robust design, quick sensor response times, and a powerful battery ensure maximum safety for up to two years with virtually no maintenance required.
Strong Performance for Maximum Safety
The Dräger Pac 6000 personal single gas detection device warns against hazardous concentrations of carbon monoxide, hydrogen sulfide, sulfur dioxide or oxygen with precision and reliability.
Powerful sensors with a very low t-90 response time ensure quick reactions. The Pac 6000 is versatile thanks to its wide measurement range. For example, the CO sensor measures concentrations from 1 to 1,999 ppm, and the H2S sensor from 0.4 to 100 ppm.
360° Alarm with Various Functions
If the Dräger Pac 6000 measures hazardous gas concentrations, it sets off an audible, visual, and noticeable vibrating alarm. Two bright, flashing LEDs on the top and bottom of the device ensure that the alarm is easily visible from all sides. The acoustic alarm reaches a volume of 90 dB. And the display can show the peak concentration measured at any given moment. Earlier alarms registered can also be retrieved at a later time, even if acknowledged.
The Pac 6000 with oxygen sensor has two additional alarm threshold. This provides an additional level of safety as a pre-alarm, in addition to the main alarm, can be set for both oxygen enriched and oxygen deficient atmospheres.
Robust design – even for the toughest conditions
The Pac 6000 can easily handle even extreme conditions: depending on the sensor, temperatures from -40 °C to 55 °C and air pressures between 700 and 1,300 mbar can be tolerated. A membrane filter protects the sensor from foreign matter such as dust and liquids. The shock-proof, chemical-resistant housing meets the requirements specified in the IP68 standard rating.
User-friendly display with all important information
The large display clearly indicates the respective gas concentration. Other important information, such as remaining operating time and battery capacity, is also displayed. The bright backlighting ensures clear reading of all values in the low light or dark lighting conditions.
Economical operational costs
All versions of the Pac 6000 are equipped with extremely durable Dräger Sensors and a powerful battery. Neither the sensor nor the battery need to be changed for the entire two-year maintenance-free service life of the H2S, SO2 and CO versions. The service life of the Dräger Pac 6000 starts when it is first activated. The device automatically switches off after two years.
The Pac 6000 is protected against water, dust and other foreign bodies by a special membrane filter. When the filter becomes heavily soiled you can quickly and easily replace it yourself. The device is then ready to use again in no time.
- Lifetime: 730 days (that’s les than .27 cents/day)
- 2 Year lifetime
- No calibration over 2 Year lifetime
- 2 year warranty
- Low initial cost
- Dimensions (W x H x D) 64 x 84 x 20 mm; 3.3" x 2.5" x 0.8 in.
- Weight 113 g; 3.7 oz.
- Available in: CO, O2, SO2 or H2S.
• CO 0 – 2,000 ppm
• H2S 0 – 100 ppm 1
• O2 0 – 25 Vol.-%
• SO2 0 – 100 ppm
