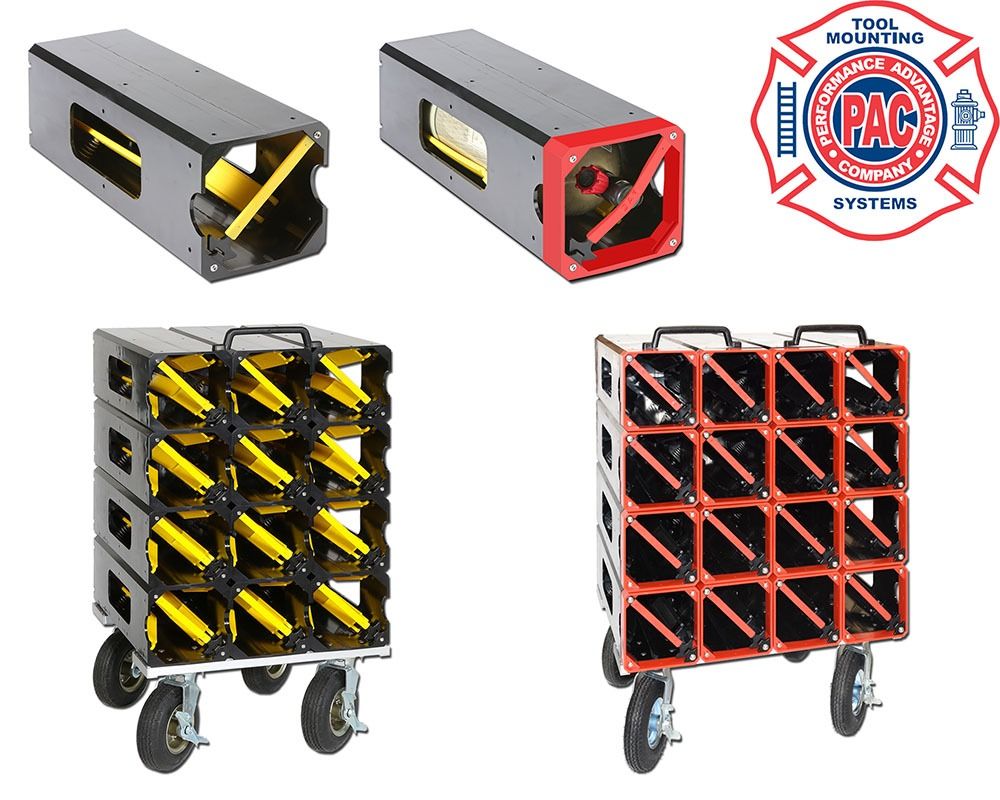

Cylinder Mate Mobile Storage Unit
The Cylinder Mate Mobile Storage Units are assembled from individual Cylinder Mates. Standard units of 12, and 16 are available. Mobile units allow air cylinders to moved or relocated easily for transfer or filling.
• Restrains cylinder under impact of 10-G’s in any direction
• Meets NFPA 1901 Impact requirements
• Automatically adjusts to hold cylinders
• High stength quick release elastomer locking strap
• Weather & UV Resistant. Non-Conductive
• Empty cylinders can be inserted backwards and easily removed for re-filling
| Model | # Of Cyl. |
Max. Cyl. Length |
Dimensions | Weight | Strap |
| CM6000-12 | 12 | 23 1/8" | 25.5” L x 28” W x 45” H | 155 lbs. | Yellow |
| CM6060-12 | 12 | 25" | 26.5” L x 24” W x 45” H | 166 lbs. | Red |
| CM6000-16 | 16 | 23 1/8" | 24.5” L x 32” W x 45” H | 210 lbs. | Yellow |
| CM6060-16 | 16 | 25" | 26.5” L x 32” W x 45” H | 214 lbs. | Red |
SHIPPING NOTE: Due to the size/weight of this product, shipping/truck delivery may be the best option. There will be no shipping charges shown at checkout. You may complete your order online or use the "Request A Quote" payment option at checkout. A First Out Rescue Equipment specialist will contact you to make delivery arrangements and give you the final cost of your order, including actual freight charges.
