CMC AZTEK ProSeries System

The CMC AZTEK ProSeries System is the first AZTEK system to be UL Classified to NFPA 1983 (2017 ED) – General Use – Manufactured System.

The CMC AZTEK System is designed to support rescue teams and each component has been tested and proven to work efficiently in a multitude of scenarios. Everything comes pre-rigged and fully assembled for immediate deployment. Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 mechanical advantage for a multitude of rigging applications, or for personal edge protection, the versatile AZTEK ProSeries System gives rescuers endless rigging solutions:

The set-of-fours includes 15.2 m (50 ft) of 8 mm AZTEK ProSeries Cord, which is CMC’s high-performance 100% nylon blend. These can extend to 3.6 m (12 ft) while providing a 4:1 or 5:1 mechanical advantage with a Minimum Breaking Strength (MBS) of 38 kN (8,542 lbf).

For a personal edge travel-restrict with nearly 15.2 m (50 ft) of adjustable travel, attach the carabiner of the personal end of the system to an appropriate anchor and restrict edge travel using the integrated Purcell connected to your harness. The sleeved web edge-pro helps protect the cord around anchors with abrasive surfaces.

Uses
•    Quickly adjusts litter attendant position
•    High angle litter scoops
•    Solo pick-off
•    Easily pass knots
•    Correct disoriented equipment under load
•    Effortlessly transfer loads
•    East set dynamic fixed brakes
•    Pre-tensioned back-ties
•    Redirect anchors
•    Establish travel restriction
•    Dynamic directional
•    Dynamic lowers
•    Hauling systems
•    High angle attendant tether
•    Load-releasing hitch
•    Personal mechanical advantage (PMA)

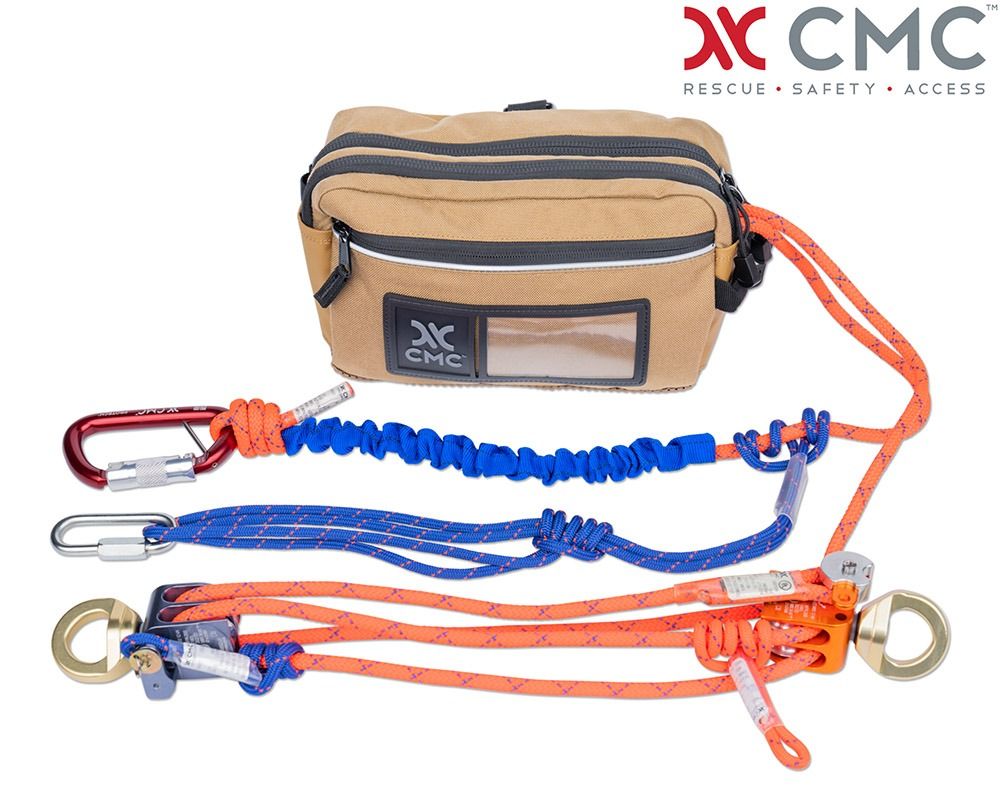

The CMC AZTEK ProSeries System comes fully assembled in the AZTEK ProSeries Pack and includes the following:

CMC AZTEK Omni Pulley Set, (one blue, one orange)
•    UL Classified to NFPA 1983 (2017 ED)
•    Quick Pin for AZTEK Omni Pulley

AZTEK ProSeries Cord
•    15.2 m (50 ft) of 8 mm hi-viz orange
•    15 kN (3,372 lbf), Sewn-Eye Termination – 12 kN (2,698 lbf)

AZTEK Edge-Pro Tubular Webbing, blue .6 m (24 in)

ProTech™ Aluminum Auto-Lock Carabiner
•    Removable keeper pin
•    29 kN (6,519 lbf)

AZTEK Bound-Loop Prusik
•    Orange (6 mm) – 9 in
•    Blue (6 mm) – 9 in
•    Blue (6 mm) – 42 in

Maillon Rapide Quick Link, Oval
•    7 mm
•    27 kN (6,070 lbf)

AXTEK System Weight: 4.3 lbs.
