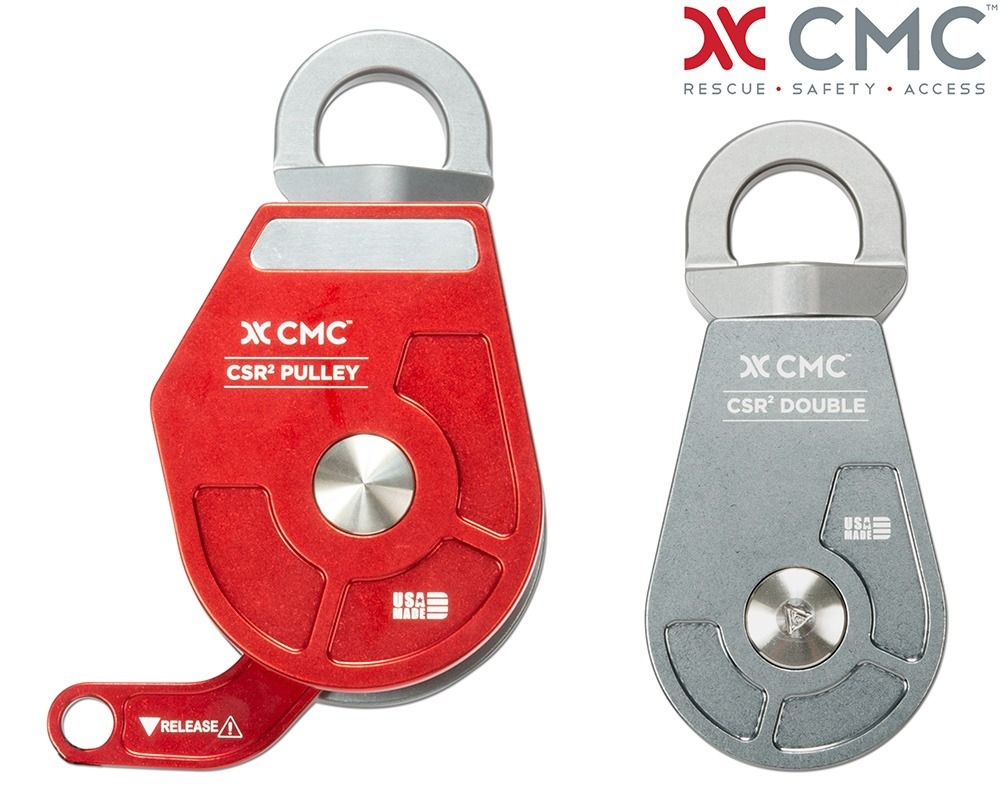

CMC Confined Space Rescue 2 Pulley
The second generation of the CMC Confined Space Rescue Pulley (CSR2) is stronger yet lighter and accommodates 7/16 in (11 mm) to 1/2 in (13 mm) life safety rope. The CSR2 Pulley is ideal for industrial applications as well as rescue operations, the CSR2 uses the CMC proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load.
The absence of the toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must be raised even further before the cam can be released, which can be impossible if the system is fully collapsed without thinking about this problem ahead of time – causing potential problems with the load on the system becoming stuck.
An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. The larger swivel size allows for the easy application of rescue-size carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.
• Compatible with 11-13 mm life safety rope
• Meets NFPA 1983 (2017 ED) – General Use
• CSR2 Pulley MBS 46 kN (10,341 lbf)
• CSR2 Double Pulley MBS 45 kN (10,116 lbf)
• Machined from solid block of aircraft-grade aluminum
• Made in USA
| Type | Weight | Sheave Thread Size | Color | NFPA Rating | MBS (LBF) |
| Single | 2.5 lbs. | 2.25" x 0.5" | Red/Gray | General Use | 46 KN (10,341) |
| Double | 1.5 lbs. | Gray | 45 KN (10,116) |
