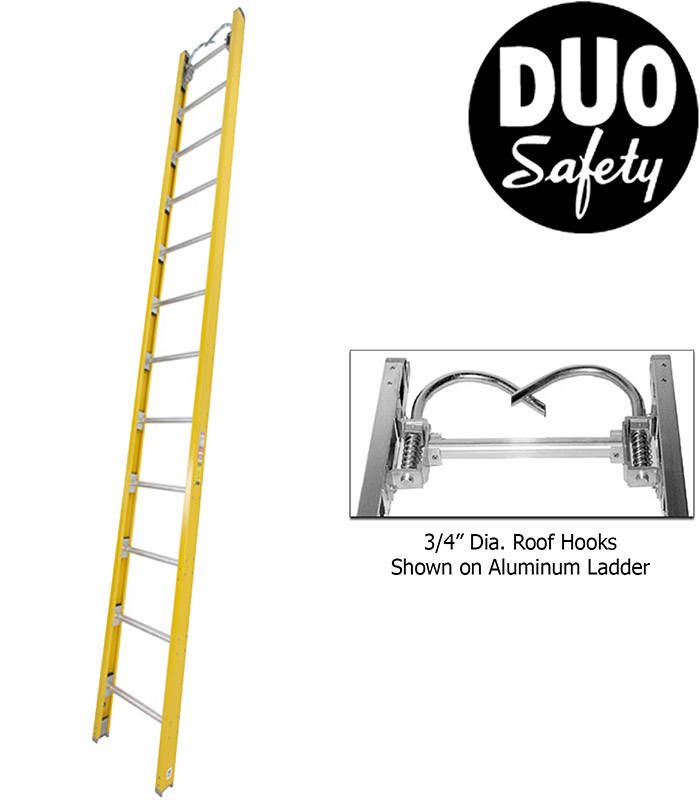

Fiberglass Roof Ladder
Duo-Safety Fiberglass Fire Ladders use an extruded channel rail construction with aluminum rungs. The aluminum rungs are welded to aluminum blocks which are then riveted to the rails. All Duo-Safety Fiberglass Ladders are non-conductive for single phase 110 volt service with a maximum of 30,000 volts only, dependent upon conditions.
• 3-3/8” Channel Rail
• 750lb Duty Rated with a 4:1 safety factor
• 3/4" diameter roof hooks
• Special self-extinguishing resin - will not support flame
• Special high temperature resins for heat resistance
• Special ultra-violet screen for fade resistance
• Safety yellow color for better visibility in smoke
• Prong feet are standard
• Rubber safety feet for an additional fee
|
Size | Closed Length | Width | Banking Thickness | Weight |
|---|---|---|---|---|
|
10 ft. |
10' 2.812" |
19.25" |
3.375" |
33 lbs |
|
12 ft. |
12' 2.812" |
19.25" |
3.375" |
35 lbs |
|
14 ft. |
14' 2.812" |
19.25" |
3.375" |
41 lbs |
|
16 ft. |
16' 2.812" |
19.25" |
3.375" |
47 lbs |
|
18 ft. |
18' 2.812" |
19.25" |
3.375" |
50 lbs |
|
20 ft. |
20' 2.812" |
19.25" |
3.375" |
56 lbs |
All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please Contact Us.
Shipping Note:
Ladders are one of the most interesting products we ship. The vast majority of ladders will ship via truck freight because of the size and/or weight. We try to use the best and least expensive carrier whenever possible, however carriers can vary by as much as $100 for an identical shipment. Because of this, it is not possible to provide a shipping price at check-out.
You may complete your order online, however there will be no shipping charges displayed at checkout. Please provide an accurate shipping address at check-out, and a First Out Rescue specialist will contact you to make delivery arrangements and give you the final cost for your order including freight charges.
