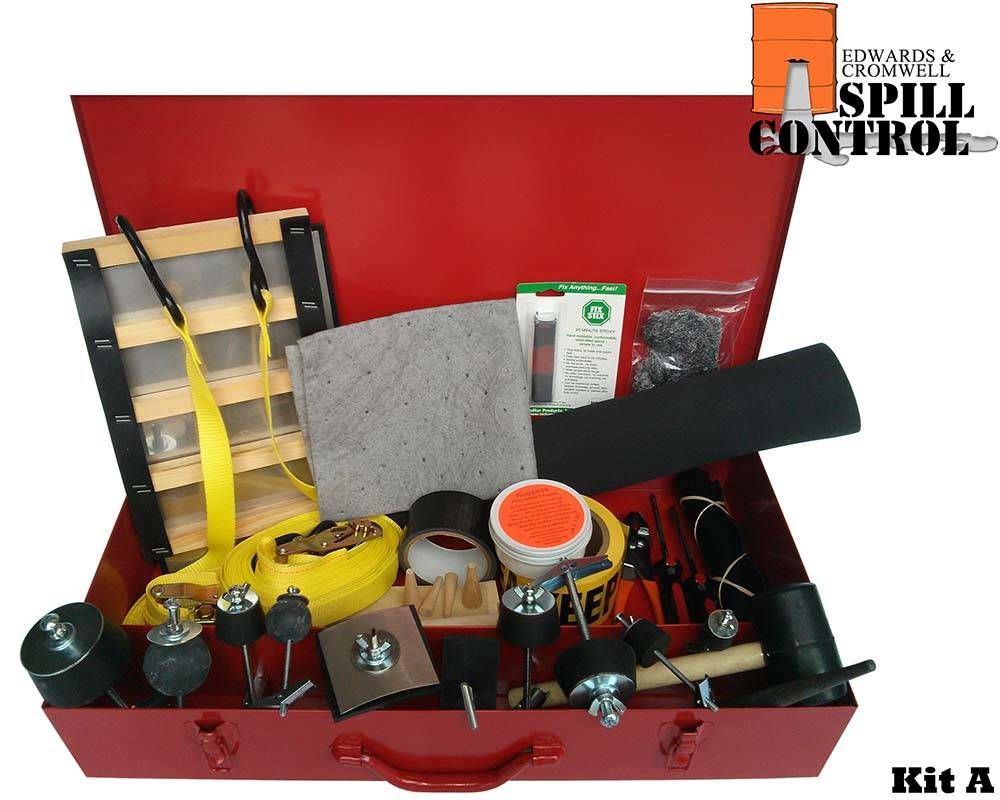

Universal Leak Kit
Edwards and Cromwell Universal kits are equipped to handle small to medium holes in any type of low pressure vessel. Components cover pin holes, convex & concave holes and flat surface holes of all shapes. Covers hairline and large cracks in drums and tanks.
Kits components include:
• Screw patches
• T-patches
• Ball plugs
• Tapered surface plugs
• Epoxy putty
• Lead wool
• Barrier tape
• Wood wedges & plugs
• Tool kits (standard & non-sparking)
These leak control kits are designed for use only by experienced and trained personnel for temporary leak control until the container can be secured or disposed of properly. These leak kits are designed to handle “typical” leaks encountered in the field. It is not intended to address every type of leak in every type of container.
Extreme CAUTION should be used where dealing with leak control:
• Always wear proper protective clothing.
• Identify & know the chemical you are working with.
• Compatibility with Neoprene, SBR Rubber, Stainless and Plated Steels used in this kit.
| Item/Description | Kit A | Kit AE |
| 1” Ball Plug | 1 | 1 |
| 3” Ball Plug | 1 | 1 |
| 4” Taper Surface Plug | 1 | 1 |
| 6” Taper Surface Plug | 1 | 1 |
| 8” Taper Surface Plug | 1 | 1 |
| 10” Taper Surface Plug | 1 | 1 |
| 11.5” Taper Surface Plug | 1 | 1 |
| 13.5" Taper Surface Plug | 1 | 1 |
| 1" T-Patch | 1 | 1 |
| 3" T-Patch | 1 | 1 |
| 6” Screw Patch | 1 | 1 |
| 8” Screw Patch | 1 | 1 |
| 10” Screw Patch | 1 | 1 |
| 12” Screw Patch | 1 | 1 |
| 14” Screw Patch | 1 | 1 |
| Lead Wool Pack | 1 | 1 |
| Hot or Cold Hose Tape | 1 | 1 |
| 18” x 22” x ¼” Foam | 1 | 1 |
| 18” x 22” Sorbent Pad | 1 | 1 |
| Barrier Tape | 1 | 1 |
| PND Plug Pattie | 1 | 1 |
| Fix-Stix Epoxy Putty | 1 | 1 |
| 8” x 12” Neoprene Material | 1 | 1 |
| 8"x12" Hard Rubber Patch | 1 | 1 |
| 8” x 12” Foam Patch | - | 1 |
| Support Ladder for 8" x12" patch | 1 | 1 |
| 22 ft. Nylon Ratchet Straps w/ Rubber Coated Hooks | 2 | 2 |
| Wood Wedge Pack | 1 | 1 |
| Safety Hammer | 1 | 1 |
| Drift Pin - Steel or Non-Sparking (NS) | 1 | 1 |
| Tool Kit - Steel or Non-Sparking (NS) | 1 | 1 |
| Stainless Steel T- Bolts for 8 x 12 rubber patch w/ wing-nuts | - | 3 |
| Carrying Case (24" x 14" x 5") |
1 | 1 |
| Kit Weight (lbs.) | 25 | 33 |
- Kit with the NS designation contains the non-sparking tool pack and non-sparking drift pin.
