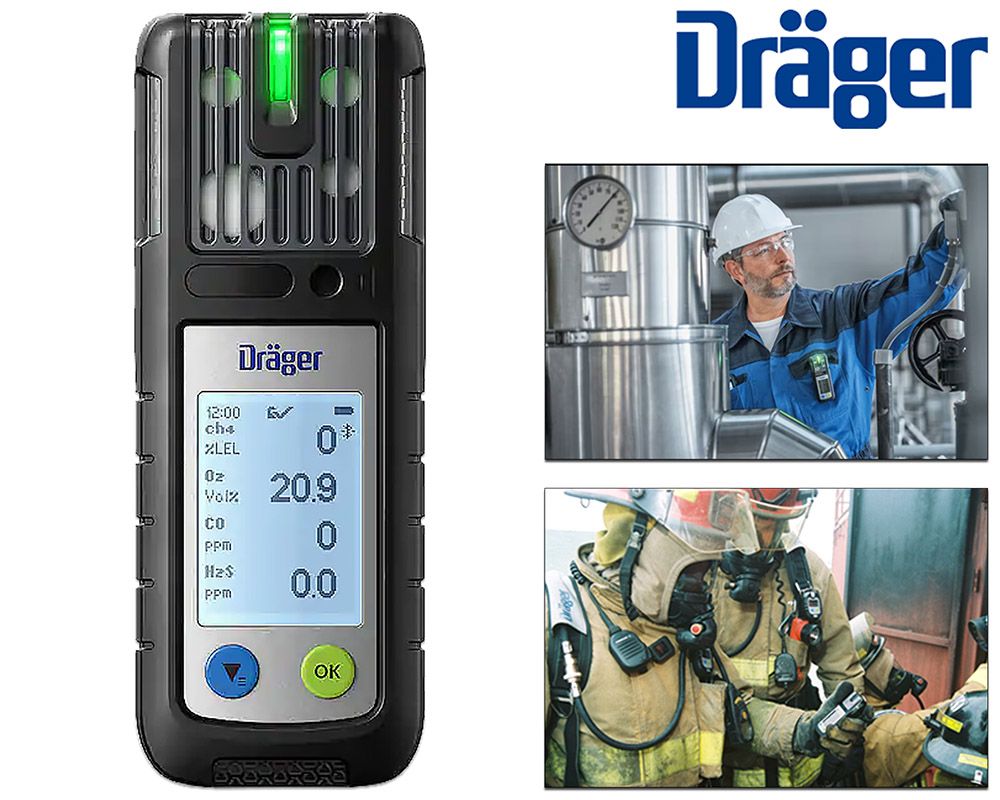

Dräger X-am 2800 Multi-Gas Detector
The X-am 2800 multi-gas detector measures up to four gases and is equipped with a shock-resistant CatEx sensor. With the Dräger Gas Detection Connect software, it offers live monitoring and powerful fleet management. Designed for personal monitoring, the X-am 2800 offers the highest level of safety at a low cost of ownership.
Multi-Gas Detector
• 1 to 4 gas detection device
• Designed for personal air monitoring
• Detection of flammable gases and vapors as well as O2, CO, NO2, SO2 and H2S
Powerful Data Analysis in the Cloud
Networking capability provides safety and efficiency: Transfer your recorded data directly and conveniently via Bluetooth to a smartphone and the Gas Detection Connect software. As an alternative, you can also transfer the data directly to the cloud with the X-dock test station, providing secure access to your data and its analysis any time and anywhere with access to the internet.
Comfortable Fleet Management
Manage your fleet of equipment comfortably and efficiently with the X-am 2800. Save operating costs and time with fast tests, using the automatic test station X-dock, with low gas consumption or mechanical bump test station. Further advantages include powerful fleet management via our smart software solution, convenient firmware updates in the X-dock, an optional RFID transponder, and individual color marking of the devices. Sensors are durable and devices remain operational for years, with easy-to-replace spare parts, including the power supply. Dräger provides a 4-year manufacturer's warranty on the basic device, and is compatible with X-am 2500 accessories.
Tailor-Made Gas Monitoring
The X-am 2800 is small and lightweight, comfortable to wear, and easy-to-use, with large buttons for ease of use while wearing gloves. The display clearly shows important information, such as gas readings, alarms and time. The green D-light indicates that the unit is ready for use, with a simple interface. For added safety, the oxygen channel has four alarm thresholds, real pre-alarms, and main alarms for falling and rising concentrations. The X-am 2800 is approved for use in Ex zone 0, and has been tested according to protection class IP 68.
Sensors: Durable and Powerful
The newly-developed Ex sensor calibrates within seconds and protects against shocks, measuring flammable vapors, such as gasoline, diesel, and nonane. The unit can also be set to measure methane, propane, hydrogen, and many other gases. The performance is complemented by Dräger's simple cross calibration concept, in which the measurement gas, calibration gas, and bump test gas can be specified individually. The X-am 2800 calculates the necessary conversations after testing, and the sensor meets the new IEC standard 60079-29-1 (International Electrotechnical Commission) standards.
With decades of experience in sensor technology, Dräger develops and produces the sensors itself, including the powerful and durable electrochemical sensors in the XXS format, resulting in lower operating costs.
Focus on Sustainability
During the development of the X-am 2800, sustainability was priority. The durable Dräger sensors and the rechargeable power supply, which can be easily replaced with one screw, ensure a long service life. Almost all spare parts can be replaced by trained users, with remaining parts repaired by Dräger Service. In addition, the X-am 2800 is compatible with accessories from the previous series.
X-am 2800 Specifications:
• Weight: 7.8 to 8.8 oz. (220 to 250 g) depending on sensor equipment
• Ingress: IP 68 (Ingress Protection, dust/water)
• Run Time: 12+ hours w/ Bluetooth active
• Usage in “Ex Zone 0” possible
• Alarms: Audible alarm > 90 dB at 1 ft or (30 cm), Vibration alarm, Optical 180 alarm
• Bluetooth ® for Live Monitoring with Dräger Gas Detection Connect
Pre-configured Dräger X-am 2800:
• Sensors: Ex, O2, CO, H2S (default settings with standard alarm thresholds)
• CatEx Unit: %LEL
• CatEx: methane adjustment
• Oxygen 0 – 25 vol.-% measuring range
• T4 NiMH battery, desktop charger & power supply included
View Dräger X-am 2800 Product Specifications [PDF]
• Please Contact Us shuold you need a different sensor(s) configuration on the X-am 2800
