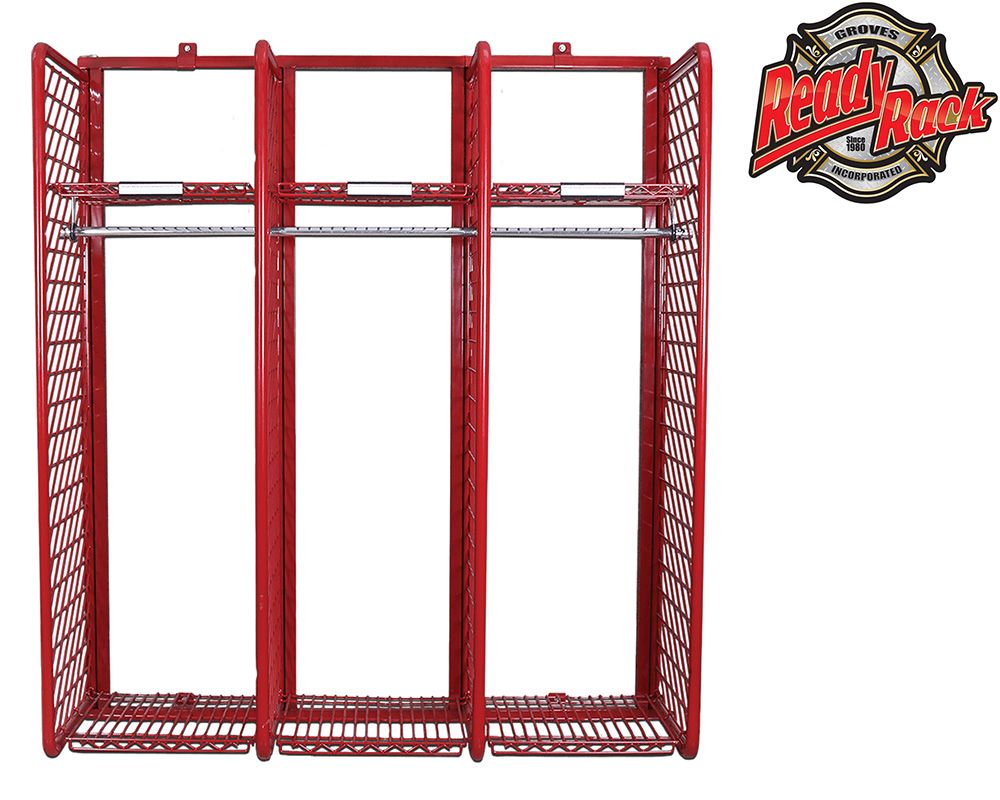

Red Rack - Wall Mounted (20")
Keep gear ready to go - where you need it, when you need it!
The design of the Red Rack system promotes maximum air flow to help dry PPE faster.
The Red Rack system utilizes tubular steel construction that is the strongest in the industry and eliminates the need for a rear support grid. By eliminating the rear grid installation is simplified and you still have access to your station’s building code approved electrical outlets.
• Modular design allows any length configuration from one to as many as you need.
• Design allows allow unrestricted air flow to aid in drying wet gear
• Permits wall clearance for mechanicals (pipes, conduit, electrical outlets)
• Heavy duty powder coat stands up to the rigors of the fire service
• Compartments are completely separated with full length dividers
Each Unit Contains:
• (2) Adjustable shelves - Helmet (top), Boot/Bunker (bottom)
• (2) Apparel hooks
• Name plate holder
• Hanging rod (length based on number of compartments)
Security Option Includes:
• Top Security Shelf
• Security Door
• Hinge Lock Bracket Set
Security option must be ordered per opening and is priced per opening.
Installation:
Standard Red Rack installation includes brackets for flush mounting to the wall. If your wall has obstacles such as exposed conduit or piping wall spacers area available in either 2” or 6”. Spacer kits include one wall spacer and one floor support. The number of spacers required is determined by the length of the Red Rack System you are installing. Wall Spacer Kits are available HERE.
Dimensions:
• Compartments are 20" wide
• 20"(d) x 72"(h) x length specified
| Model # | Compartments |
Compartment Width |
Length |
| RRWM-1/20 | 1 | 20" | 21.75" |
| RRWM-2/20 | 2 | 20" | 42.50" |
| RRWM-3/20 | 3 | 20" | 63.25" |
| RRWM-4/20 | 4 | 20" | 84.0" |
| RRWM-5/20 | 5 | 20" | 104.75" |
| RRWM-6/20 | 6 | 20" | 125.50" |
| RRWM-7/20 | 7 | 20" | 146.25" |
| RRWM-8/20 | 8 | 20" | 167.0" |
| RRWM-9/20 | 9 | 20" | 187.75" |
| RRWM-10/20 | 10 | 20" | 208.50" |
| RRWM-11/20 | 11 | 20" | 229.25" |
| RRWM-12/20 | 12 | 20" | 250.0" |
| RRWM-13/20 | 13 | 20" | 270.75" |
| RRWM-14/20 | 14 | 20" | 291.50" |
| RRWM-15/20 | 15 | 20" | 312.25" |
SHIPPING NOTE: Due to the size/weight of this product, shipping/truck delivery may be the best option.ﾠ Arrangements will be arranged by phone or email. You may complete your order online and a First Out Rescue Equipment specialist will contact you to make delivery arrangements and give you the final cost of your order, including freight charges.
