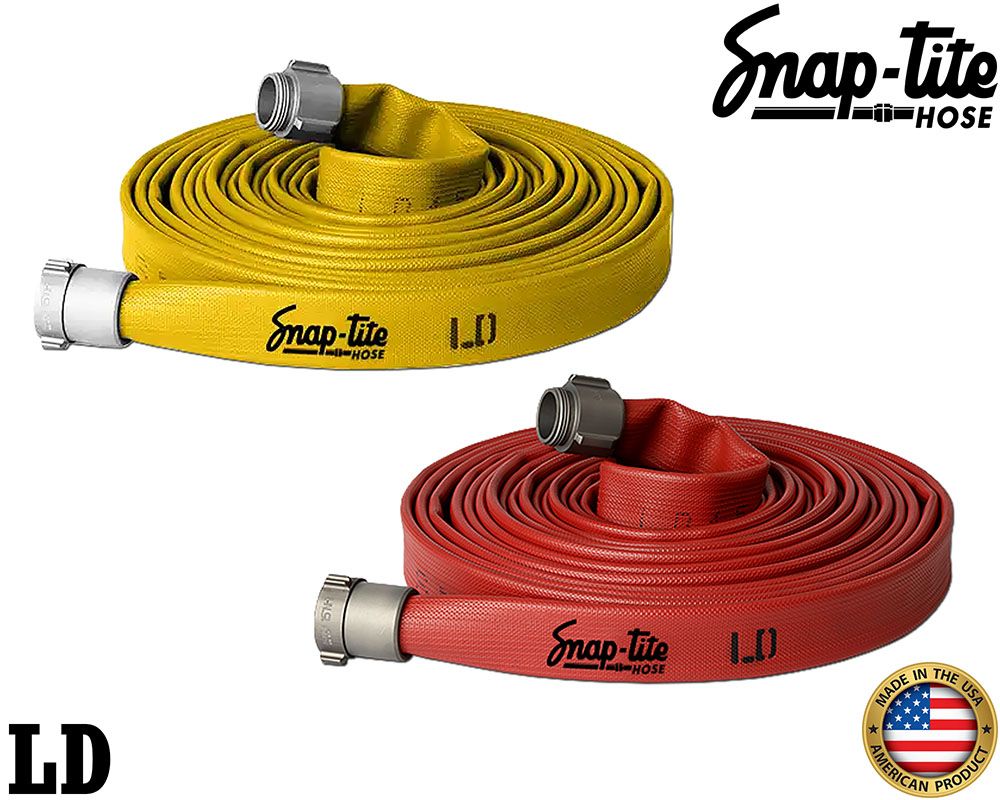

Snap-Tite LD Hose
EXTRUDED NITRILE RUBBER FIRE HOSE
Snap-Tite LD™ is a premium quality extruded thru-the-weave, nitrile rubber fire hose. It is an easily coiled, non-kinking, high flow, lightweight hose that also resists abrasion, chemicals, and weathering by ozone.
FEATURES:
• Lightweight and kink resistant at low pressures makes this hose superior for high rise firefighting
• Extruded thru-the-weave, nitrile rubber fire hose.
• Reinforced with circular woven, twill weave, and nylon fibers.
• Highly resistant to both conductive and radiant heat.
• Hose remains flexible at temperatures as low as -40ºF (-40ºC)
• Resistant to ozone, oxidation, and most chemicals/petrochemicals.
• Maintenance free, no drying required, and is easily cleaned.
• Manufactured in accordance with NFPA 1960 Standard
• ISO-9001:2015 certified quality assurance system.
• 2-1/2” is UL/ULC Certified
• Made in the USA
• Potable water approved: No
Temperature Range:Hose remains flexible at temperatures as low as -40ºF (-40ºC)
Warranty:
• Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
• Lifetime warranty against delamination
Hose Lengths: 50 ft. and 100 ft. standard. Contact Us to discuss custom lengths.
Hose Colors: Red, Blue, Yellow
Standard Couplings:
• Aluminum Rocker Lug - NH/NST thread
• Brass Rocker Lug – NH/NST thread
Customized Hose Stenciling:
• Standard stenciling of hose is per NFPA 1960 (mfg, country origin, month & year of mfg.and service test psi)
• Custom stencils in addition to NFPA stenciling available
• Custom stencils (max. 25 characters at 2 places on hose). No additional charge
• Longer and/or more frequent custom stenciling available. Contact Us for pricing.
| SNAP-TITE LD HOSE SPECIFICATIONS | |||||||
| SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1" | 1.0" NH | Aluminum | 300 | 600 | 900 | 7 | 1.75" |
| 1.5" | 1.5" NH | Alum. or Brass |
300 | 600 | 900 | 11 | 2.44" |
| 1.75" | 1.5" NH | Alum. or Brass |
300 | 600 | 900 | 12 | 2.9" |
| 2" | 1.5" NH | Aluminum | 300 | 600 | 900 | 15 | 3.26" |
| 2.5" | 2.5" NH | Alum. or Brass |
300 | 600 | 900 | 22 | 4.1" |
View Snap-Tite LD Hose Product Data Sheet [PDF]
Optional Couplings:
• Brass Pin Lug - NH/NST thread
• IPT thread available for rocker lug and pin lug threaded couplings.
• Please Contact Us to discuss your specialty coupling needs.
Note:
• As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
