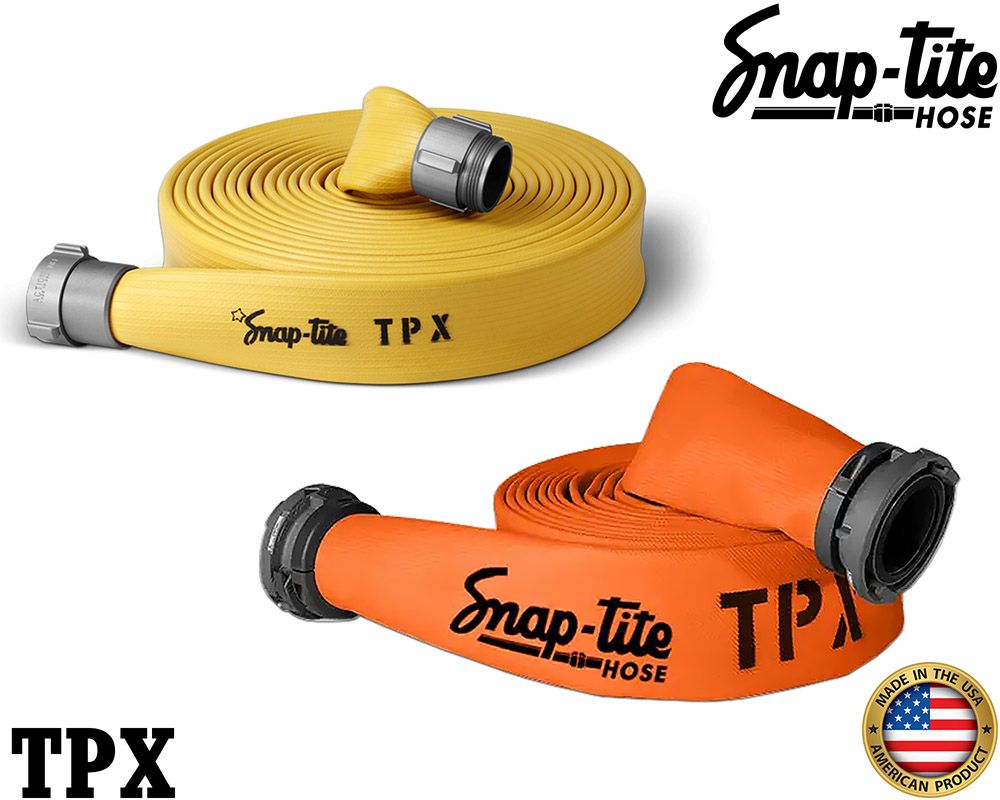

Snap-Tite TPX Hose

3-PLY NITRILE RUBBER ATTACK/SUPPLY HOSE

Lean and mean, Snap-Tite TPX hose is the ultra-tough municipal rubber fire hose you have been looking for—but without the bulk and weight.  Traditionally manufactured extruded hose can vary in thickness, becoming bulky and heavy.  TPX’s unique 3-ply design features a ribbed cover and smooth nitrile liner that are extruded independently.  The cover is inserted inside the tight-weave polyester reinforcement, vulcanized, then turned inside-out. The liner is then inserted and the hose is vulcanized a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall.  This makes the lightweight TPX more resistant to puncture and easier to pack and store, requiring less hose bed space than typical extruded hose.  Snap-Tite TPX is aso highly resistant to both conductive and radiant heat.

3-Ply Construction:
•    Nitrile Rubber Cover
•    Polyester Inner Jacket
•    Nitrile Rubber Liner

FEATURES:
•   3-ply rubber municipal fire hose
•   Cover and liner made of heavy duty nitrile rubber
•   High tensile strength tightly woven polyester reinforcement
•   Construction provides for maximum durability and flexibility.
•   Smooth liner keeps friction loss to a minimum.
•   Nitrile rubber cover greatly increases abrasion resistance, increasing service life
•   Tightly woven reinforcement resists puncture.
•   Suitable for attack and soft sleeve suction applications.
•   Remains flexible at temperatures as low as -40°F (-40°C)
•   Resistant to ozone, oxidation, and most chemicals/petrochemicals.
•   Tighter weave provides resistance to puncture while being easier to pack and store.
•   Lays flat and needs less hose bed space than typical extruded hose.
•   Manufactured in accordance with NFPA 1960 Standard, latest edition
•   ISO-9001:2015 certified quality assurance system.
•   Made in the USA
•   Potable water approved: No

Temperature Range: Remains flexible at temperatures as low as -40°F (-40°C)

Warranty:
•  Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
•  Lifetime warranty against delamination
•  Two (2) Year All Hazards Warranty

Hose Lengths: 50 ft. and 100 ft. standard.  Contact Us to discuss custom lengths.

Hose Colors:  Yellow, Red, Orange

Standard Couplings:
•    Aluminum Rocker Lug - NH/NST thread
•    Brass Rocker Lug – NH/NST thread
•    Aluminum Storz

Customized Hose Stenciling:
•    Standard stenciling of hose is per NFPA 1960 (mfg, country origin, month & year of mfg.and service test psi)
•    Custom stencils in addition to NFPA stenciling available
•    Custom stencils (max. 25 characters at 2 places on hose).  No additional charge
•    Longer and/or more frequent custom stenciling available.  Contact Us for pricing.

View Snap-Tite TPX-Attack Product Data Sheet [PDF]

View Snap-Tite TPX-LDH Product Data Sheet [PDF]

Optional Couplings:
•    Brass Pin Lug - NH/NST thread
•    IPT thread available for rocker lug and pin lug threaded couplings.
•    3” Aluminum Storz
•    Please Contact Us to discuss your specialty coupling needs.

Note:
•    As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
