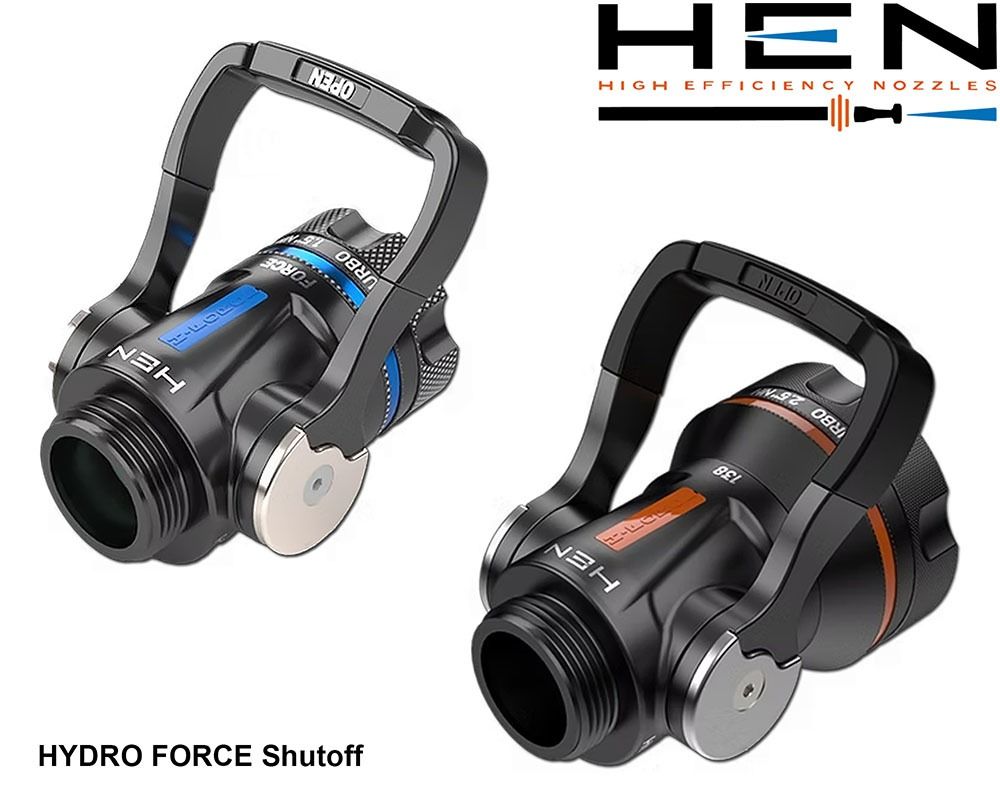

HEN Hydro Force Shutoff
At the heart of the FORCE product line is the HEN HYDRO FORCE shutoff, an integrated shutoff, featuring a built-in TURBO back-pressure device. The HYDRO FORE shutoff has been engineered for a 75 psi inlet pressure, this maximizes hose performance while maintaining nozzle pressure between 40 to 50 psi across all 1.75-inch handline hose types.
This configuration delivers a targeted flow of 175 GPM at a target 45 psi nozzle pressure. This results in a manageable 60 lb. nozzle reaction force.
HYDRO FORCE Shutoff Features:
• Full 1 3/8” waterway
• Works with all 1.75" hose lines
• 75 PSI inlet/back pressure
• Delivers 175 GPM flow @ 45 PSI nozzle pressure
• 60 pounds of nozzle reaction
• Reduces nozzle whip & hose kinks
• Superior ergonomic design
• Aluminum alloy body and metal gate-ball valve for maximum durability
• NFPA 1964/1960 compliant
| Shutoff | Waterway | Inlet Thread | Outlet Thread |
| 1.5" | 1 3/8" | 1.5" NH or NPSH. | 1.5" NH or NPSH |
| 2.5" | 1 3/8" | 2.5" NH | 1.5" NH |
Optional Pistol Grip
• Available for 1 3/8” waterway HEN Shutoffs
