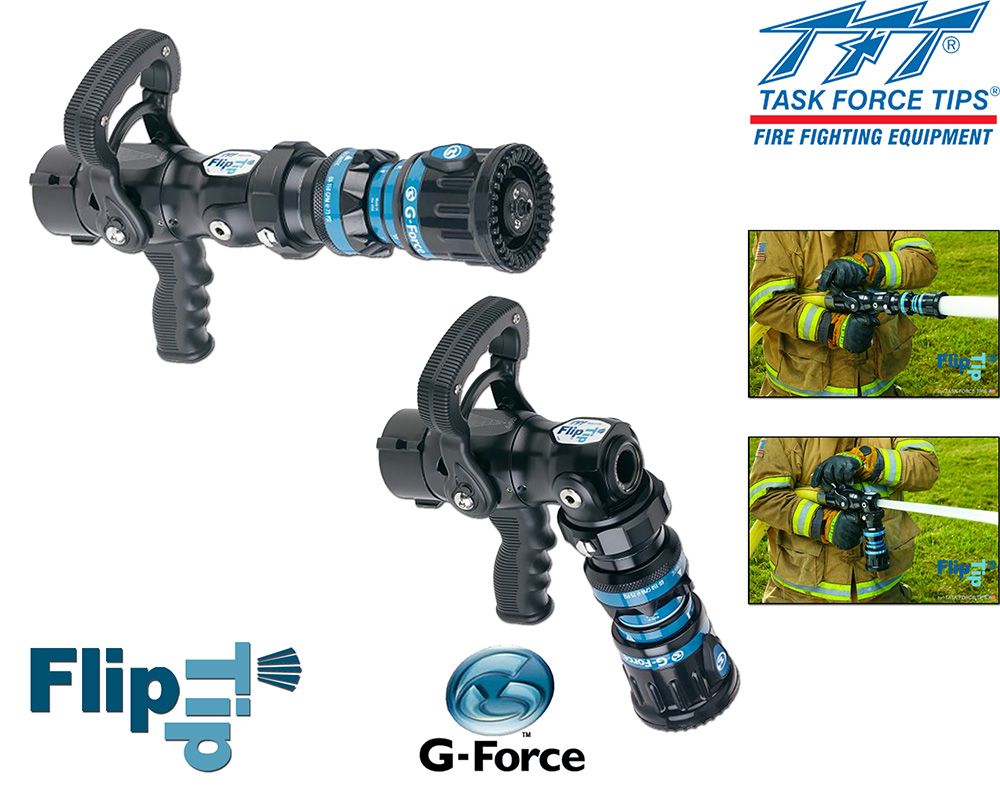

TFT Flip Tip with G-Force Nozzle
The Flip Tip with G-Force Nozzle provides the initial attack team a choice of flows as well as outstanding stream performance. Integrated with a high volume ball shutoff and your choice of G-Force combination nozzle, the FlipTip provides a single nozzle that offers both a hard hitting smoothbore and high performance combination nozzle.
The detent style ball shutoff allows positive operator control, choice of 100 psi or low pressure 75 psi operation (7 or 5 bar), and stainless spinning, cut metal or bonded rubber fog teeth. Color coded handles are available for Flip Tip nozzles equipped with a pistol grip.
• Choice of Fixed, Selectable, or Automatic Tip
• Integrated Combination Nozzle and Smoothbore Base
• Choice of Operating Pressures and Fog Teeth Designs
Inlet Size:
• 1.5” NH Female
Nozzle Styles:
• Flip-Tip Ball Valve with G-Force Nozzle
• Flip Tip Ball Valve with G-Force Nozzle and pistol grip
| Tip Sizes | |
| Rear Tips Sizes | G-Force Nozzle Pressure Control |
| 7/8" | Fixed 150 GPM @ 100 PSI |
| 15/16" | Fixed 150 GPM @ 75 PSI |
| 1.0" | Selectable GPM: 30/60/95/125/150 @ 100 PSI |
| 1 1/8" | Selectable GPM: 30/60/95/125/150 @ 75 PSI |
| 1 3/8" | Automatic 60-150 GPM @ 100 PSI |
| Automatic 60-150 GPM @ 75 PSI | |
NOTE: Not all rear tip and G-Force nozzle combinations are available from TFT.
Colored Pistol Grips & Colored Handle Covers:
New nozzles will be shipped with black handle covers and a black pistol grip (if equipped). Colored Pistol Grips and Colored Handle Colors are available for FREE when purchasing a new TFT nozzle. You may specify colored handles and colored pistol grip (if equipped) at the time of order, or they can be obtained for FREE once the warranty card is completed and returned to TFT.
| Available Pistol Grip and Handle Colors: | |
| Black (Std.) | Green |
| Orange | Gray |
| Red | Pink |
| Yellow | Purple |
| White | Tan |
| Blue | - |
