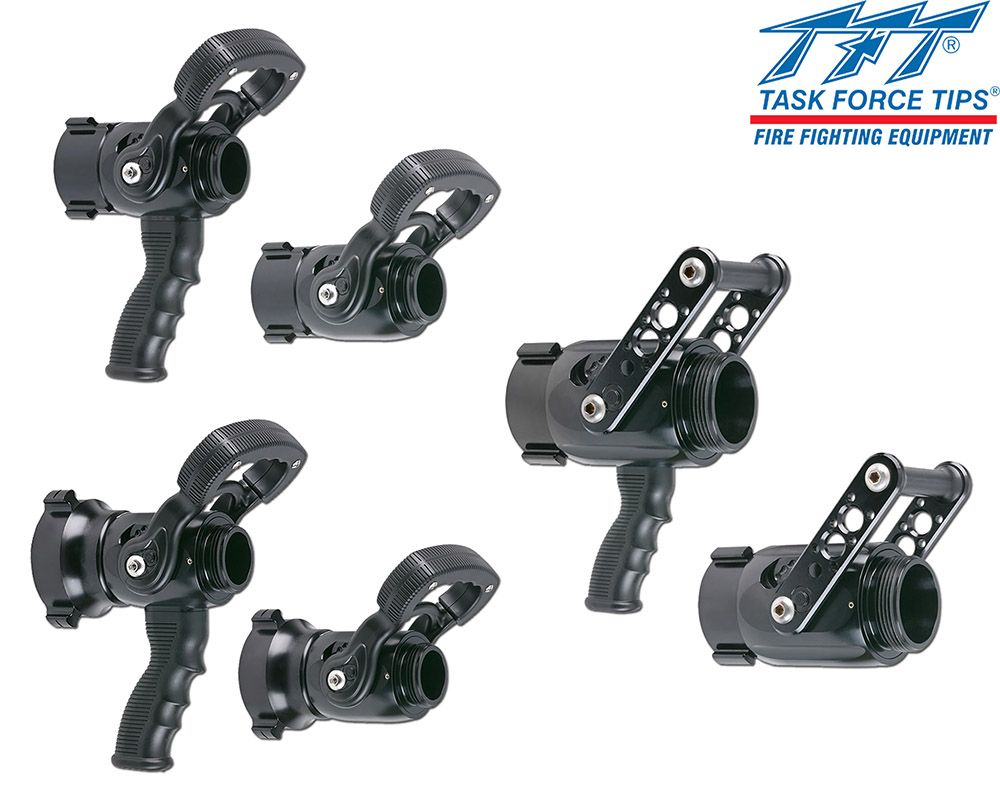

TFT Handline Detent Ball Shut Off
Separate ball-type shutoff valve with 1 3/8" or 2” waterway for use with tip only nozzles. Includes six detent flow positions and optional color coded pistol grip and handle covers.
- Six handle detent postions
- Lightweight aluminum body
- Hardcoat anodized finish
- Quick change rear valve seat
- 1-3/8” or 2" waterway
- Available with or without pistol grip
- Rocker lug swivel inlet
- NH threads standard
| Model |
Thread Size Inlet |
Thread Size Outlet |
Waterway | Length |
Pistol Grip |
Weight (lbs.) |
| H-VO | 1.5" | 1.5" | 1 3/8" | 5.25" | No | 2.6 |
| H-VOI | Yes | 3.3 | ||||
| H-2VO | 2.5" | 1.5" | 1 3/8" | 5.25" | No | 2.6 |
| H-2VOI | Yes | 3.3 | ||||
| H-3VONJ-NJ | 2.5" | 2.5" | 2" | 7.18" | No | 5.7 |
| H-3VOINJ-NJ | Yes | 5.9 |
Optional Smooth Bore Insert Kit:
The TFT Smooth Bore Insert Kit ia a compact way to combine a smooth bore, shut off, and fog nozzle. TFT has reduced the weight and length of the total assembly by placing the smooth bore nozzle inside the actual ball valve. Kit comes standard with 7/8", 15/16", 1.0" and 1-1/8" (22mm, 24mm, 25mm and 28mm) smooth bore inserts. The changeover from one size to another requires no tools. Simply slide the tip out the BACK of the valve and slide in the new size. Fits H-VO and H-2V0 series ball valves.
