TFT High Rise 45 Degree Elbow

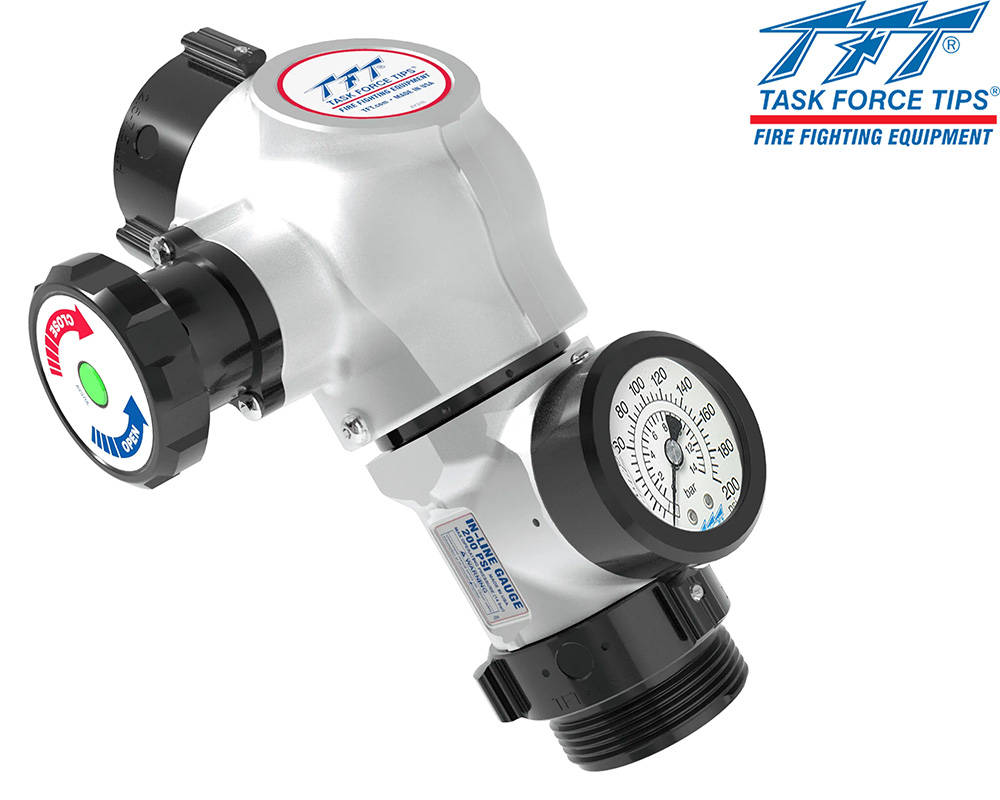

TFT’s 45-degree hiGH rise standpipe elbow is available with a choice of a left-handle or right-handle slow close valve, or no valve. The full 2.5” (64 mm) waterway allows for maximum flow with minimal friction loss.

For elbows equipped with the slow close valve, the valve includes a position indicator that identifies the valves open or closed positions. The slow close valve prevents water hammer and allows fine-tuning of the water supply exiting the standpipe. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar).

The inlet valve body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees for easy connection. The 45-degree angle allows for adaptable installation and helps position the attack hose to prevent kinks.

•    Coupling Side A: 2.5" (65mm) Non-Full Time Swivel Female
•    Coupling Side B: 2.5" (65mm) Rigid Male
•    Body Material: Aluminum
•    Pressure Relief Valve: No
•    Air Bleeder Valve: Yes
•    Pressure Gauge Range: 0-200 PSI (0-14 BAR)
•    Individually serial numbered
•    Five-year warranty

Weights:
•    No Valve: 7.75 lbs.
•    With Valve: 9.15 lbs.

 Elbow is available as part of complete High Rise Kit HERE
