TFT - Mid-Matic Nozzle

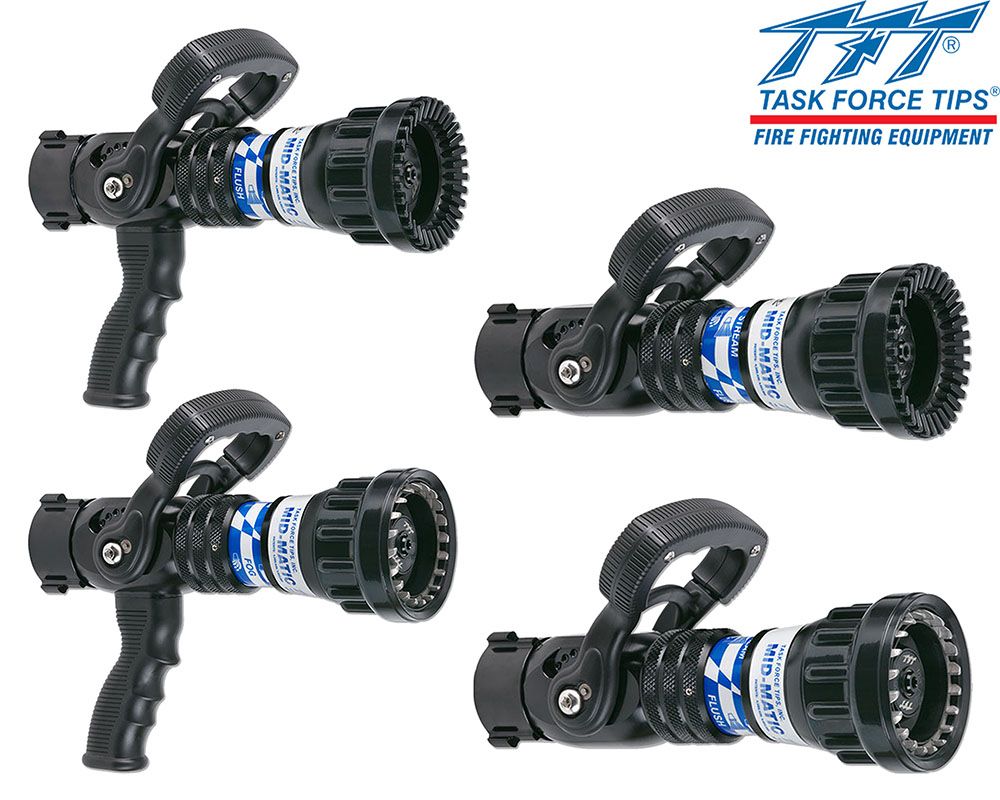

MID-MATIC NOZZLE 100 PSI 1.5" NH (38mm)
Automatic nozzle with a flow capacity of 70-200 gpm (260-760 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free flow control, six detent flow positions, and "Gasket Grabber" inlet screen. Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear. Rocker lug 1.5" NH (38mm) full-time swivel coupling is standard. FM Approved.
| Feature | Details |
| Flow Control Method |
Automatic (constant pressure, variable flow, constant gallonage) Flow does not change with pattern. |
| Flow Rate | 70-200 gpm (260-760 l/min) |
| Coupling Size | 1 1/2 inch (38mm) |
| Coupling Style | Rocker |
| Coupling | Swivel (full time, even after tightening) |
| Pressure | 100 psi (7bar) |
| Nozzle Body Style | Nozzle with shutoff (with or without pistol grip) |
| Valve Design | Slide Valve (Stainless) |
| Valve Actuation Method | Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Fog Pattern Method | Molded Rubber Teeth (fixed) or Stainless Steel (spinning) |
| Nozzle Bumper Material | Rubber - bonded |
| Certifications | NFPA/FM |
Colored Pistol Grips & Colored Handle Covers:
New nozzles will be shipped with black handle covers and a black pistol grip (if equipped). Colored Pistol Grips and Colored Handle Colors are available for FREE when purchasing a new TFT nozzle. You may specify colored handles and colored pistol grip (if equipped) at the time of order, or they can be obtained for FREE once the warranty card is completed and returned to TFT.
| Available Pistol Grip and Handle Colors: | |
| Black (Std.) | Green |
| Orange | Gray |
| Red | Pink |
| Yellow | Purple |
| White | Tan |
| Blue | - |
