TFT Quadracup Foam Nozzle
Selectable Gallonage Foam Nozzle
The Quadracup series of nozzles is a rugged and dependable selectable gallonage capable of producing aspirated foam using a retractable aspiration sleeve. When the outer sleeve is in the retracted position, the nozzle operates as a standard straight stream/combination nozzle. Flow can be set to any of four settings (30-60-95-125 GPM) or to a flush setting. The uniquely cut fixed mixed fog teeth are capable of producing a wide range of fog patterns.
To use the aspirating feature, the nozzle operator simply slides the outer sleeve forward and then adjusts the pattern for shape, reach and aspiration. To return to a conventional nozzle operation instantly, the nozzle operator simply retracts the outer sleeve to the rear position.
• Designed specifically for water and foam applications with Class A and AFFF foam in a single nozzle, no attachments necessary.
• Ideally suited to work with eductors, on-board foam proportioning systems, or even batch mixed foam solutions and can easily move from aspirated foam to a wide protective fog pattern.
• Models specifically for break-and-extend operations, or with an integrated stainless steel ball shutoff and TFT's unique "quick change" rear valve seat.
• Operational pressure: Choice of 100 PSI or 75 PSI

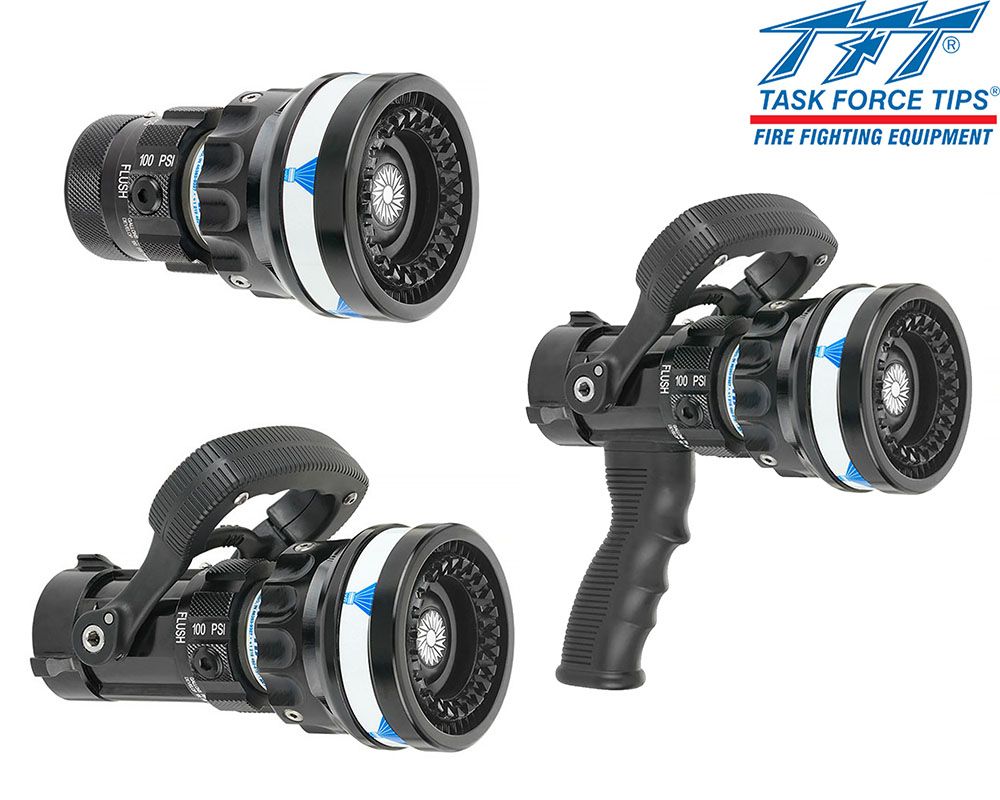

Quadracup Configurations | Inlet Size | Weight (lbs.) |
Overall Length (in.) Outter Sleeve (In - Out) |
Tip Only | 1.5" | 1.7 | 5" - 7.25" |
Nozzle (Tip & Shut-off) | 1.5" | 3.0 | 7.25" - 9.75" |
Nozzle w/Grip (Tip & Shut-off w/ grip) | 1.5" | 3.2 | 7.25" - 9.75" |
Colored Pistol Grips & Colored Handle Covers:
New nozzles will be shipped with black handle covers and a black pistol grip (if equipped). Colored Pistol Grips and Colored Handle Colors are available for FREE when purchasing a new TFT nozzle. You may specify colored handles and colored pistol grip (if equipped) at the time of order, or they can be obtained for FREE once the warranty card is completed and returned to TFT.
Available Pistol Grip and Handle Colors: | |
Black (Std.) | Green |
Orange | Gray |
Red | Pink |
Yellow | Purple |
White | Tan |
Blue | - |
