TRACTEL TU Series Griphoist
Tractel (Grip Hoist)

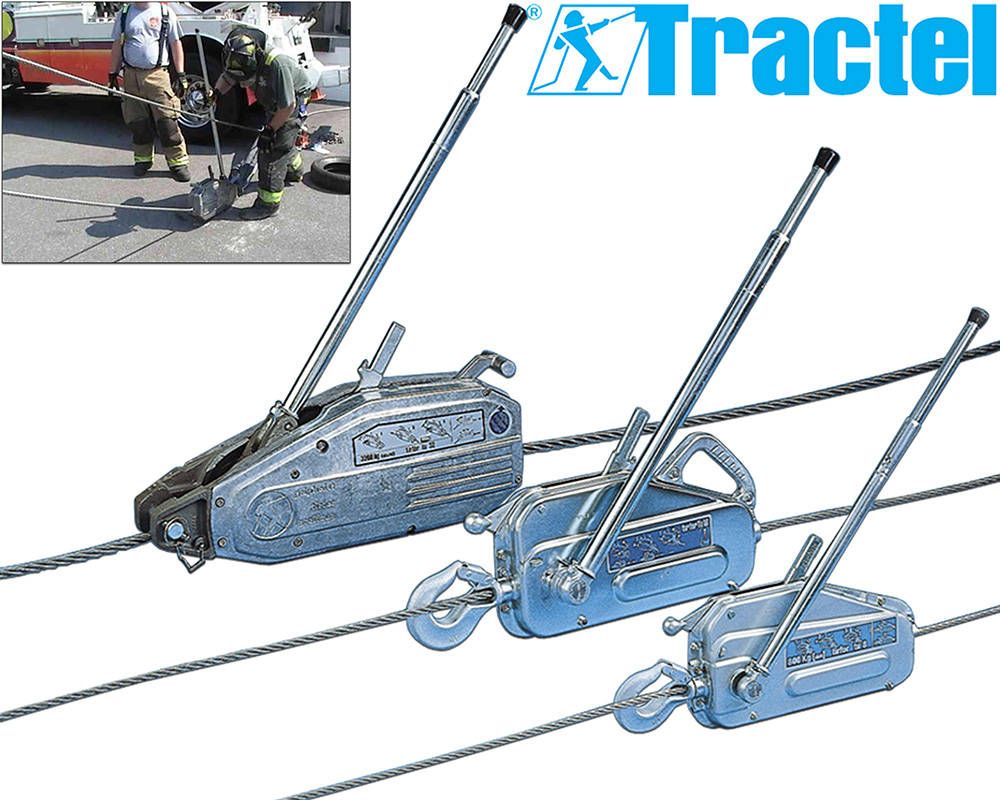

The Tractel Griphoist is a portable manual hoist with traversing wire rope that can lift, pull and place loads across great distances with extreme precision without exceeding their maximum working load limit. These lever operated wire rope hoists are suitable for use in numerous applications including Vehicle Extrication, Confined Space Rescue and Building Collapse. These hoists are portable, strong and can be used in any orientation. The design of these hoists allow for a virtually unlimited lift or pull, the limit of which is determined only by the length of wire rope inserted into it.
- Works in any position (horizontal, vertical or angled)
- Use with unlimited length of wire rope
- Easy rigging and set-up
- No 'jerking' motion when moving load
- Easy to use, heavy duty, and powerful
- Increase load capacity with deflection sheaves
- Overload protection
- High mechanical advantage
- Simple change in direction by transferring handle from one lever to another
- Simple design allows for easy maintenance and cleaning
- Designed to work in the harshest environments
| Model | TU-17 | TU-28 | TU-32 |
| Rope travel/ stroke (in.) | 2 | 1.4 | 5 |
| Nominal Capacity (lbs). | 2,000 | 4,000 | 8,000 |
| Weight (lbs.) | 18.5 | 41 | 59.5 |
| Wire Rope Length | 30 ft./60 ft./100 ft. | 30 ft./60 ft./100 ft. | 30 ft./60 ft./100 ft. |
| Wire Rope Weight (lbs.) | 8/16/27 | 29/58/96 | 8/16/27 |
| Dimentions (in.) | 20.75 x 9.75 x 4.5 | 26 x 13 x 5.75 | 27 x 13 x 6.125 |
| Handle Extended/Closed (in.) | 28 / 18 | 45 / 26 | 45 / 26 |
| Wire Rope Dia. (in.) | 5/16 | 7/16 | 5/8 |
| Min. Wire Rope Breaking (lbs.) | 10,000 | 20,000 | 40,000 |
